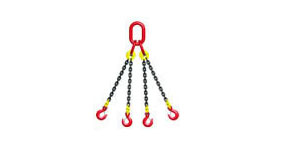

 四腿鏈條索具
詳細說明 |
|
|
鏈條索具采用有限元分析和CAD輔助軟件，參考EN818-4、GB/T20652等標準規范制作生產，鏈條索具按照索肢數量可分為單肢、雙肢和多肢。其突出的優點是耐磨、耐高溫、耐腐蝕、延展性低、受力后不會伸長等，主要用于制造業、交通運輸業、采礦業等領域。
|
規格型號 |
鏈徑 |
α≤45°載荷 |
45＜α≤60°載荷 |
吊環尺寸內寬x內長X直徑 |
鏈條重量 |
|
LTSJ4-6 |
6 |
2.1 |
1.5 |
80x150x20 |
0.79 |
|
LTSJ4 -8 |
8 |
3.1 |
2.2 |
90x160x24 |
1.38 |
|
LTSJ4 -10 |
10 |
5.2 |
3.7 |
100x190x28 |
2.20 |
|
LTSJ4 -12 |
12 |
7.3 |
5.2 |
100x190x28 |
3.10 |
|
LTSJ4 -14 |
14 |
10.5 |
7.5 |
120x230x34 |
4.13 |
|
LTSJ4-16 |
16 |
12.6 |
9 |
135x250x38 |
5.63 |
|
LTSJ4-18 |
18 |
16.8 |
12 |
140x270x42 |
6.85 |
|
LTSJ4 -20 |
20 |
21 |
15 |
160x310x46 |
8.60 |
|
LTSJ4-22 |
22 |
25.2 |
18 |
180x330x52 |
10.20 |
|
LTSJ4 -24 |
24 |
29.4 |
21 |
180x330x52 |
12.78 |
|
LTSJ4 -26 |
26 |
35.7 |
25.5 |
180x330x56 |
14.87 |
|
LTSJ4 -30 |
30 |
46.2 |
33 |
210x410x62 |
19.60 |
|
LTSJ4 -34 |
34 |
60.9 |
43.5 |
240×410×76 |
22.00 | | | |
|
|
