| 產品展示->UU型花蘭螺絲 |
|

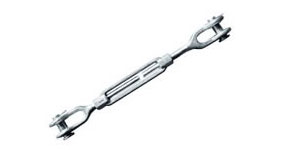

| UU花蘭螺絲(美式) |
● 采用合金鋼模鍛而成
● 采用特殊的熱處理工藝
● 體積小、強度高 | |
 |
詳細說明 |
|
|
花蘭螺絲主要用于物體間的牽引和微調，國標花蘭螺絲主要用于調節物體間的距離，美式花蘭螺絲承重性非常好，我公司可根據實際使用環境提供國標、美標、船用、及非標花蘭螺絲 。
|
規格型號 |
工作載荷 |
尺寸 |
自重 |
|
SIZE |
T |
A |
B |
G |
L1 |
L2 |
d |
BB |
KG |
|
1/4×4 |
0.23 |
6.35 |
11.43 |
15.75 |
276.86 |
175.26 |
6.35 |
101.6 |
0.16 |
|
5/16×4-1/2 |
0.36 |
7.87 |
12.70 |
22.10 |
313.94 |
212.34 |
6.35 |
114.3 |
0.24 |
|
3/8×6 |
0.54 |
9.65 |
13.72 |
22.10 |
409.96 |
257.56 |
7.87 |
152.4 |
0.37 |
|
1/2×6 |
1 |
12.70 |
13.97 |
26.92 |
469.90 |
292.10 |
9.65 |
152.4 |
0.71 |
|
1/2×9 |
1 |
12.70 |
13.97 |
26.92 |
622.30 |
368.30 |
9.65 |
228.6 |
0.79 |
|
1/2×12 |
1 |
12.70 |
13.97 |
26.92 |
774.70 |
444.50 |
9.65 |
304.8 |
1.09 |
|
5/8×6 |
1.59 |
16.00 |
20.83 |
33.27 |
509.27 |
325.12 |
12.70 |
152.4 |
1.23 |
|
5/8×9 |
1.59 |
16.00 |
20.83 |
33.27 |
661.67 |
401.32 |
12.70 |
228.6 |
1.56 |
|
5/8×12 |
1.59 |
16.00 |
20.83 |
33.27 |
814.07 |
477.52 |
12.70 |
304.8 |
1.77 |
|
3/4×6 |
2.36 |
19.05 |
26.16 |
38.10 |
546.10 |
355.60 |
15.75 |
152.4 |
1.86 |
|
3/4×9 |
2.36 |
19.05 |
26.16 |
38.10 |
698.50 |
431.80 |
15.75 |
228.6 |
2.48 |
|
3/4×12 |
2.36 |
19.05 |
26.16 |
38.10 |
850.90 |
508.00 |
15.75 |
304.8 |
2.98 |
|
3/4×18 |
2.36 |
19.05 |
26.16 |
38.10 |
1155.7 |
660.40 |
15.75 |
457.2 |
3.64 |
|
7/8×12 |
3.27 |
22.35 |
31.24 |
44.45 |
891.79 |
542.54 |
19.05 |
304.8 |
3.71 |
|
7/8×18 |
3.27 |
22.35 |
31.24 |
44.45 |
1196.6 |
694.94 |
19.05 |
457.2 |
4.89 |
|
1×6 |
4.54 |
25.40 |
33.27 |
52.32 |
627.89 |
424.69 |
22.35 |
152.4 |
4.62 |
|
1×12 |
4.54 |
25.40 |
33.27 |
52.32 |
932.69 |
577.09 |
22.35 |
304.8 |
5.68 |
|
1×18 |
4.54 |
25.40 |
33.27 |
52.32 |
1237.5 |
729.49 |
22.35 |
457.2 |
6.87 |
|
1×24 |
4.54 |
25.40 |
33.27 |
52.32 |
1542.3 |
881.89 |
22.35 |
609.6 |
8.20 |
|
1-1/4×12 |
5.89 |
31.75 |
47.24 |
71.37 |
1011.9 |
643.64 |
28.45 |
304.8 |
9.34 |
|
1-1/4×18 |
6.89 |
31.75 |
47.24 |
71.37 |
1316.7 |
796.04 |
28.45 |
457.2 |
11.2 |
|
1-1/4×24 |
6.89 |
31.75 |
47.24 |
71.37 |
1621.5 |
948.44 |
28.45 |
609.6 |
12.8 |
|
1-1/2×12 |
9.71 |
38.10 |
57.15 |
71.37 |
1054.1 |
673.10 |
35.05 |
304.8 |
13.9 |
|
1-1/2×18 |
9.71 |
38.10 |
57.15 |
71.37 |
1358.9 |
825.50 |
35.05 |
457.2 |
16.7 |
|
1-1/2×24 |
9.71 |
38.10 |
57.15 |
71.37 |
1663.7 |
977.90 |
35.05 |
609.6 |
18.9 |
|
1-3/4×18 |
12.7 |
44.45 |
66.04 |
85.85 |
1355.9 |
898.65 |
41.15 |
457.2 |
24.5 |
|
1-3/4×24 |
12.7 |
44.45 |
66.04 |
85.85 |
1660.7 |
1051.1 |
41.15 |
609.6 |
28.7 |
|
2×24 |
16.78 |
50.80 |
66.55 |
93.73 |
1766.3 |
1156.7 |
50.80 |
609.6 |
42.7 |
|
2-1/2×24 |
27.32 |
63.50 |
77.72 |
112.78 |
1853.7 |
1244.1 |
57.15 |
609.6 |
74.8 |
|
2-3/4×24 |
34.02 |
69.85 |
93.47 |
106.43 |
1898.6 |
1289.1 |
69.85 |
609.6 |
89.8 | | | |
|
|
