| 產品展示->旋轉吊環 |
|
詳細說明 |
|
|

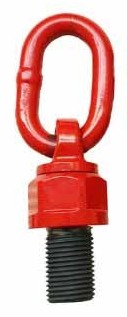

旋轉吊環又稱萬向吊環或旋轉吊環螺絲，用于有角度的特殊起吊場合。能實現水平360度旋轉和上下180度翻轉，相比與傳統的吊環螺絲，更靈活、更能全方面滿足起吊的需求。
材質采用35CrMo合金鋼和進口42CrMo合金鋼
|
型號 |
載荷
WLL(T) |

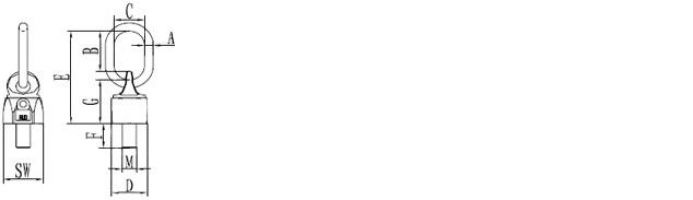

單位 |
重量 |
|
A |
B |
C |
D |
E |
F |
G |
M |
SW |
|
M8 |
0.3(0.4) |
8 |
33 |
29 |
33 |
76 |
13 |
36 |
8 |
28 |
0.25 |
|
M10 |
0.45(0.6) |
8 |
33 |
29 |
36 |
78 |
17 |
38 |
10 |
30 |
0.3 |
|
M12 |
0.6(0.75) |
10 |
51 |
35 |
42 |
105 |
21 |
45 |
12 |
36 |
0.4 |
|
M14 |
1.0(1.25) |
13 |
47 |
38 |
48 |
112 |
25 |
54 |
14 |
41 |
0.6 |
|
M16 |
1.3(1.5) |
13 |
47 |
38 |
48 |
114 |
25 |
54 |
16 |
41 |
0.6 |
|
M20 |
2.0(2.5) |
13 |
56 |
35 |
64 |
135 |
33 |
65 |
20 |
55 |
1.1 |
|
M24 |
3.5(4.0) |
18 |
68 |
40 |
81 |
172 |
40 |
87 |
24 |
70 |
2.7 |
|
M30 |
5.0(6.0) |
22 |
93 |
50 |
99 |
220 |
50 |
105 |
30 |
85 |
5.5 |
|
M36 |
8(10) |
22 |
87 |
50 |
90 |
210 |
54 |
95 |
36 |
80 |
4.6 |
|
M42 |
10(12.5) |
26 |
112 |
65 |
98 |
240 |
63 |
100 |
42 |
85 |
6.3 |
|
M48 |
10(12.5) |
26 |
112 |
65 |
98 |
240 |
68 |
100 |
48 |
85 |
6.5 |
|
M56 |
15(18) |
32 |
120 |
70 |
120 |
280 |
84 |
130 |
56 |
95 |
11.3 |
|
M64 |
15(18) |
32 |
120 |
70 |
120 |
280 |
94 |
130 |
64 |
95 |
11.6 |
|
M72 |
25(30) |
40 |
125 |
80 |
160 |
332 |
108 |
163 |
72 |
130 |
27 |
|
M80 |
30(35) |
40 |
125 |
80 |
170 |
332 |
120 |
163 |
80 |
130 |
28.7 |
|
M90 |
30(35) |
40 |
125 |
80 |
170 |
332 |
135 |
163 |
90 |
130 |
30.7 |
| | |
|
|
